Description

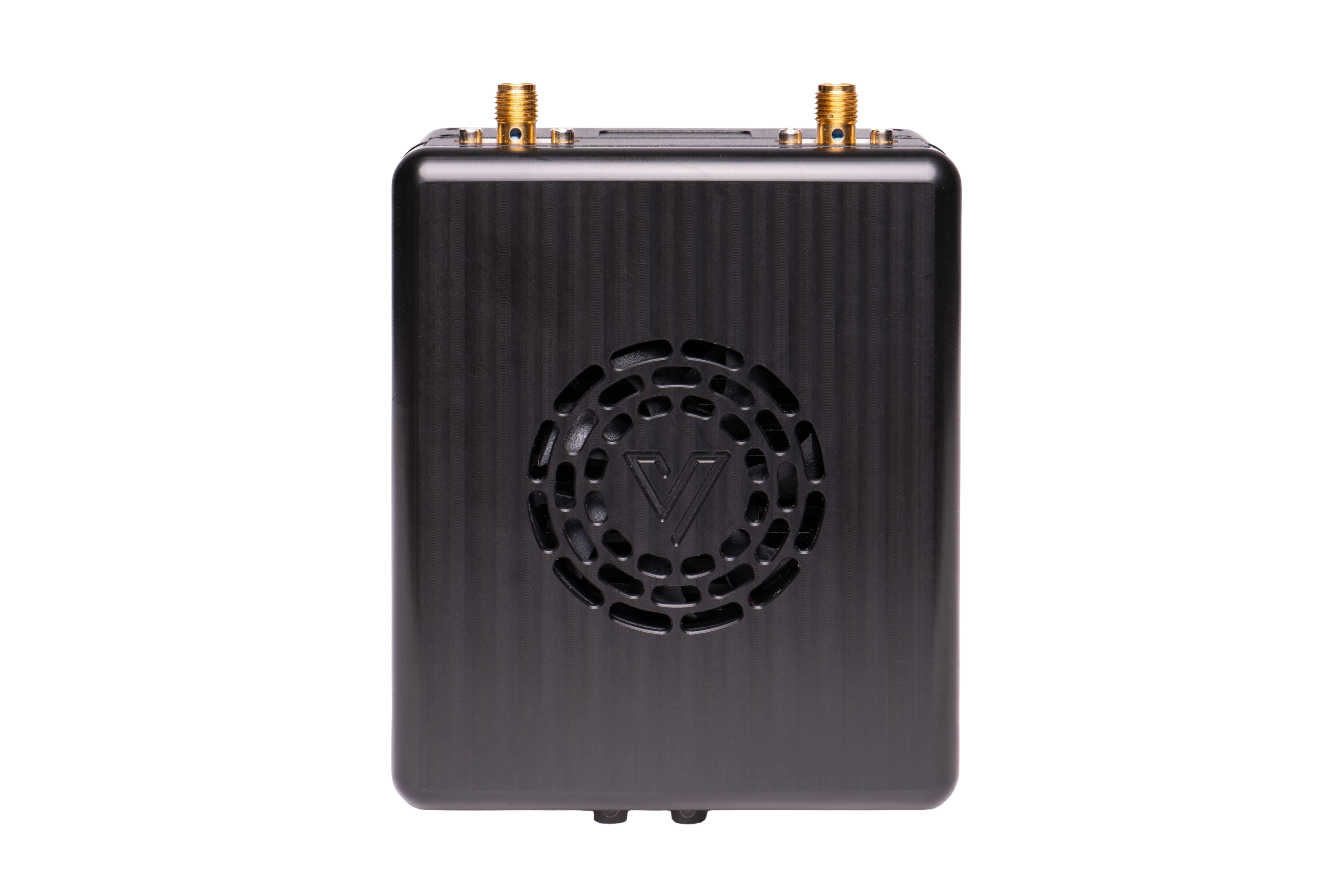

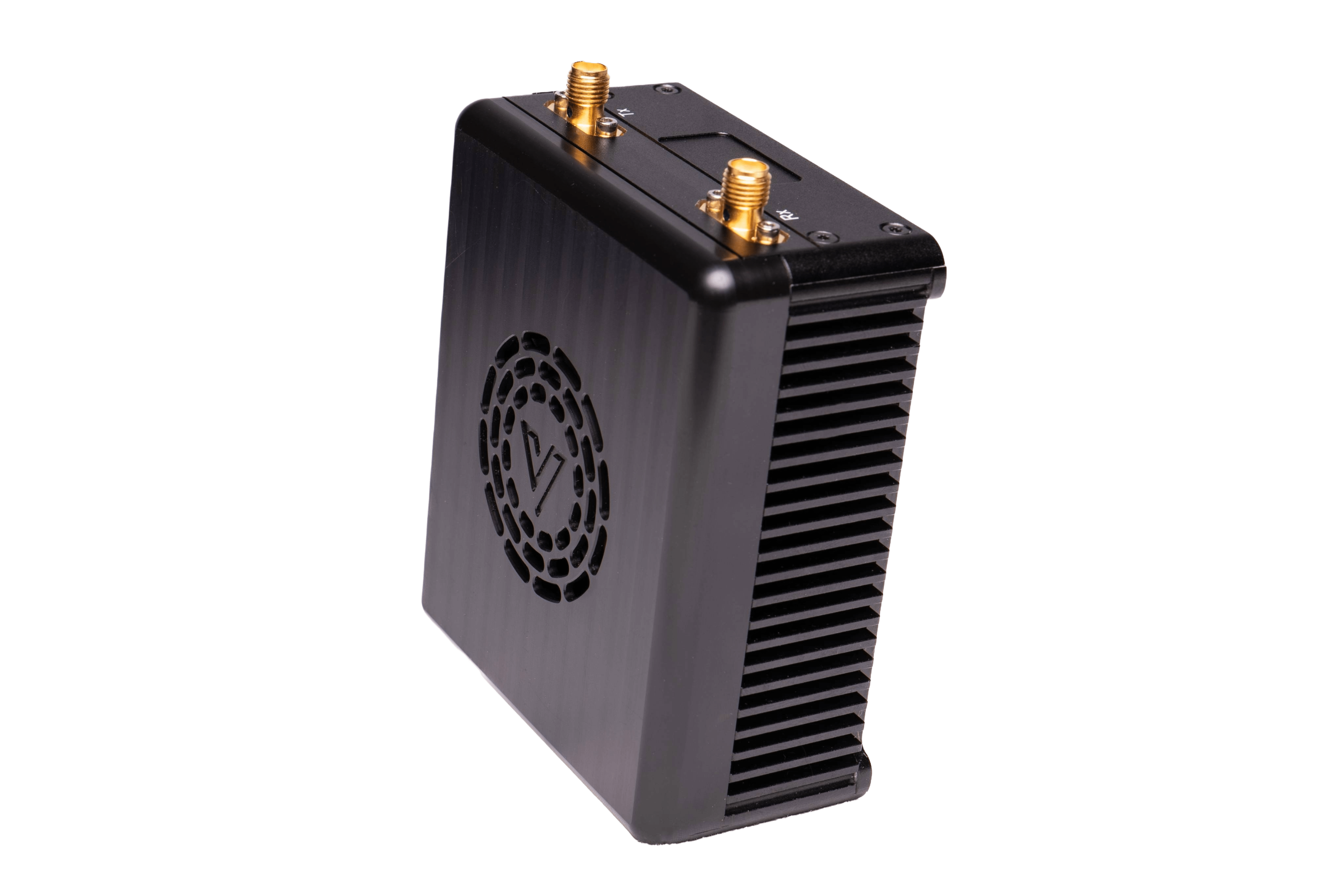

CLIQ is an ultra-compact COFDM wireless camera transmitter for productions where space, weight and mounting flexibility matter as much as image quality.
It supports a single 4K UHD feed or dual HD services using high-efficiency HEVC encoding, delivering broadcast-grade images while conserving RF bandwidth. Operating across licensed microwave bands (1.35–7.8 GHz, licence dependent), CLIQ provides stable, low-latency transmission across live events, field production and temporary installations.
Selectable power levels and configurable modulation allow optimisation for different RF conditions, while integrated camera control and data simplify on-board setups by carrying video and control together. Encryption options are available for secure contribution workflows when required.
KEY FEATURES
- Single 4K UHD or dual 3G HD inputs
- HEVC (H.265) Main 10 and 4:2:2 10-bit encoding
- Configurable COFDM modulation supporting DVB-T, LMS-T and ISDB-T, with DVB-T2 available via optional licence
- Frequency agility across 1.35–7.8 GHz (licence dependent)
- Selectable 50mW / 100mW transmit power
- Ethernet or Wi-Fi web-based configuration
- UHF / FocalPoint camera control (410–490 MHz) & IP control support
- Compact, rugged design (102 x 74 x 40 mm)
- 11–28V DC input, 24W consumption
- BISS-1 / BISS-E / AES 128 & 256-bit encryption
